LC Bolts

Listing of all nuts and bolts used on the 250 and 350 LC. This Excel spreadsheet gives you a list of all the bolts and there thread size, you can then use to order a full set of replacements. The only thing you need to do is decide on the head type you require.

Some tips and tricks I have found useful during the restorations I have completed.

1 Try and get hold of die nuts and taps, these will be useful for cleaning threads but not actually re-cutting the thread.

2 Always use a lubricant when using a tap or die nut, you can clean up after.

3 When finally assembling the bike always use "Copper Slip" on the threads, except when you use a thread lock fluid.

4 Never presume a thread size just by looking, Yamaha use 10 x 1.25, 10 x1.5, 8 x 1.25 and 8 x 1.0 thread sizes.

5 I found it useful to have a known selection of nuts and bolts with there size labelled on them to use as a method of establishing a thread size.

6 Just because a thread has stripped doesn't mean its beyond repair, you can always try using a helicoil to save the part.

7 Torque settings for all the bolts.

Bolt Sizes And Quantity For 350 LC
Location	Thread Size (mm)	Length (mm)	Qty	Part No	Ref No
Air Box Lid	6	50	3	92501-06050	23
Air Box Mounting	6	16	1	92501-06016	25
Baffle	6	10	2	92501-06010	3,7
Barrel Drain Bolt	8	10	2	90105-08163	8
Battery Box Mount	6	16	2	92502-06016	8
Batter Box Strap	5	16	1	98501-05016	12
Bottom Yoke	8	35	4	97313-08035	20
Brake Hose Splitter	6	25	1	93708-06025	18
CDI Mount	6	25	2	97302-06025	16

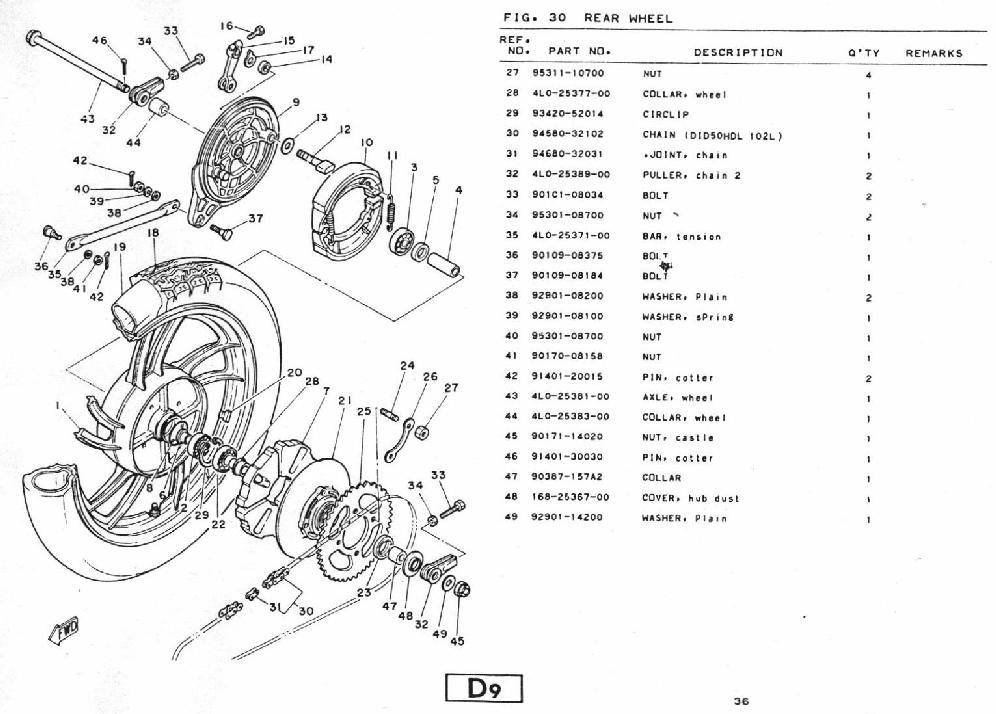

Chain Adjuster	8	40	2	90101-08034	33
Chain Guard	5	12	2	93706-05012	10
Clock Mount Bracket (To top yoke)	6	45	2	97306-06045	18
Clock Mount Bracket Nuts (To top yoke)	6		2	95306-06600	20
Clock Mount Nuts (Dome)	5		4	95301-05800	13
Clutch Lever Perch	6	25	1	97306-06022	9
Coil Cover	6	15	2	92501-06012	15
Coil Mount	6	25	2	92502-06025	6
Crankcase	6	45	3	97311-06045	18
Crankcase	6	55	4	97311-06055	19
Crankcase	6	90	1	97311-06090	20
Crankcase Nuts	8		8	95301-08600	16
Cyl Head\Top Hose Casting	6	20	2	91316-06020	3
Cyl Head\Top Hose Casting	8	16	1	90105-08165	4
Exhaust Mount	10	44	2	90101-10065	27
Exhaust Pipe Dome Nut	10		2	90176-10009	26
Exhaust Studs Nuts	8		4	90185-08097	10
Float Bowl Drain Screw	5	8	2	98501-05008	19
Float Bowls	4	16	8	98501-04016	22
Footrest Hanger Mount	10	35	2	90105-10036	46
Footrest Hanger Mount	10	65	2	90105-10164	45
Front Brake Pipe Holder	6	25	2	97301-06025	20
Front Disk	8	30	12	90101-08312	3
Front Engine Mount Bolt	8	20	2	97321-08020	7
Front Engine Mount Bolt	10	140	1	90105-10053	4
Front Engine Mount Nut	10		1	95701-10100	6
Front Forks Drain Bolt (See Note 2)	6	8	2
Front Mudguard	8	25	4	90101-08253	7
Fuse Box	6	16	2	98501-05020	12

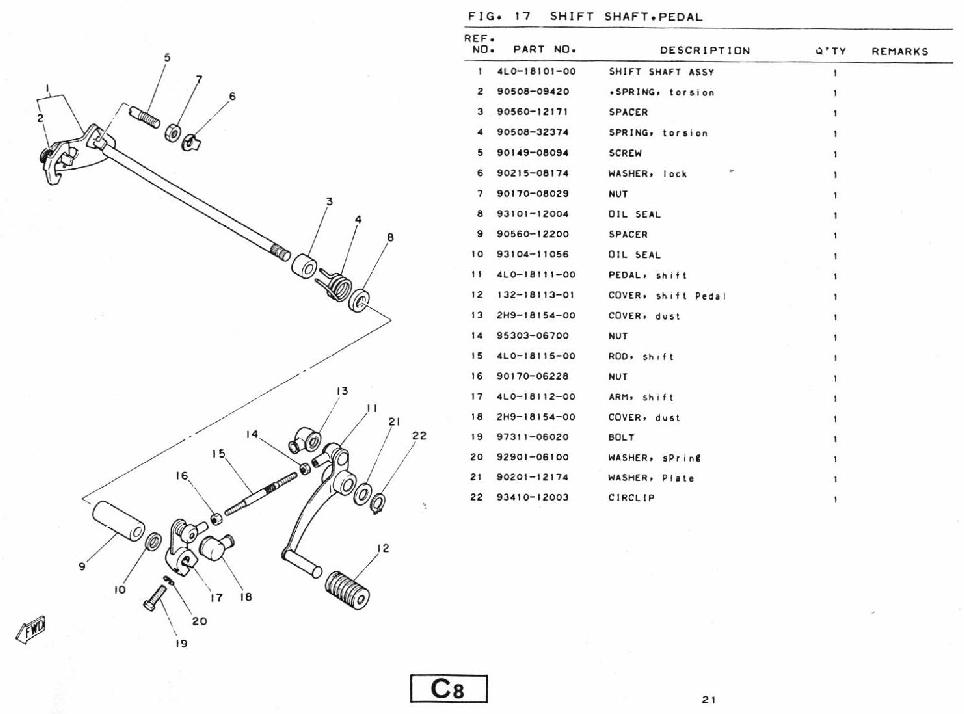

Gear change	6	20	1	97311-06020	19
Grab rail	8	45	4	90149-05156	16
Handlebar Clamps	8	30	4	91316-08030	15
Headlight Adjuster Brkt	4	6	1	98501-04006	17
Headlight Rim	5	12	2	98506-05010	19
Headlight Shell	8	40	2	97306-08040	20
Headlight Shell Nuts	8		2	95302-08600	24
Headlight\Indicator Brackets	6	20	4	92506-06020	32
Horn	8	16	2	97326-08016	13
Horn Cover	5	16	2	98501-05016	24
Ignition Switch	6	16	2	97301-06020	2
Joint\Head Water Hose	6	20	2	91316-06020	3
Kickstart	8	30	1	97326-08030	20
LH Outer Engine Case	5	10	2	98506-05012	11
LH Outer Engine Case	6	16	1	92506-06016	5
LH Outer Engine Case	6	20	3	92506-06020	23
LH Outer Engine Case	6	70	3	92506-06070	3
LH Outer Engine Case (Clutch Worm Adj)	5	15	2	98501-05016	25
LH Switch	5	30	2	98506-05030	2
Lifting Handle	8	16	2	97306-08016	19
Lower Air Box Nuts	6		2	95702-06100	15
M\C Cover (Countersunk head required)	4	10	2	98706-04010	5
M\C Handle Bar Clamp	6	25	2	97326-06025	7
Neutral Switch (Countersunk head required)	5	12	3	98702-05012	6
Neutral Switch Wire				93706-05012
Oil Pump	5	15	2	98501-05016	19
Oil Pump Bleed Screw	4	8	1	98901-04008	11
Petrol Tank	8	12	1	97302-08012	7
Petrol Tap\Tank	6	10	2	90149-06011	18
Pillion Rear Footrest	10	35	2	95811-10035	16
Pillion Rear Footrest Dome Nut	10		2	90176-10009	17
Rad	6	20	4	97306-06020	10
Rad Cover	5	25	4	98909-05025	15
Rear Air Box Mounting Bolts	6	10	2	97301-06010	16

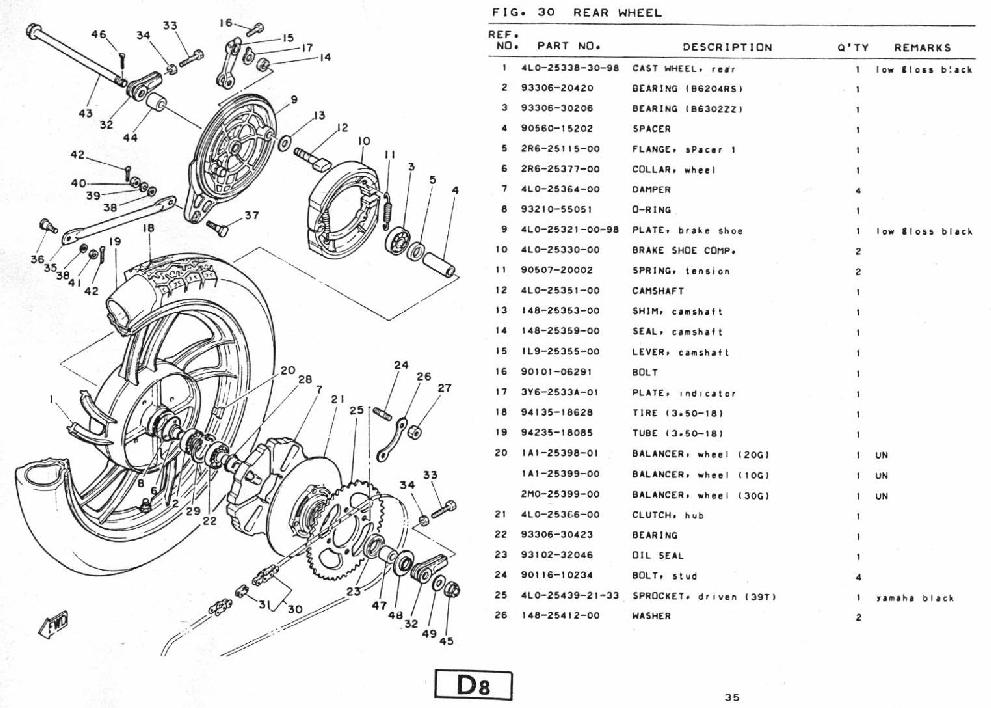

Rear Brake Lever Arm	6	30	1	90101-06291	16
Rear Brake Pedal Height Adj	6	25	1	90101-06288	47
Rear Brake Pedal Height Adj Lock Nut	6		1	95301-06700	48
Rear Engine Mount Bolt	8	20	2	97321-08020	12
Rear Engine Mount Bolt	10	100	1	90105-10040	9
Rear Engine Mount Nut	10		1	95701-10100	11
Rear Light Cover	4	50	2	1M1-04524-50	5
Rear Light Mount (See Note 1)	6	20	2	90101-06005	11
Rear Mudguard (Both parts)	6	16	7	97301-06016	7
Rear Number Plate\Light Bracket	6	20	4	93706-06020	12
Rear Reflector Nut	5		1	95302-05600	21
Rear Sub-frame	8	16	4	97301-08016	11
Rectifier	6	16	2	92502-06016	20
Reed Blocks	6	25	8	91316-06025	2
RH Outer Engine Case	5	16	3	96506-05016	21
RH Outer Engine Case	6	20	3	92506-06020	8
RH Outer Engine Case	6	30	8	92506-06030	16
RH Outer Engine Case	6	40	1	92506-06040	14
RH Switch	5	30	1	98506-05030	5
RH Switch	5	40	1	98506-05040	6
Seat Locks (Both)	6	16	4	92502-06016	10
Stator Mount	6	25	3	90163-06025	4
Tacho Drive (Crankcase)	6	10	1	97306-06010	14
Throttle Cable Bracket (On Air Box)	4	12	1	98506-04012	14
Tie Bar Brkt To Frame	8	25	2	97301-08025	33
Tie Bars To Engine	10	45	2	97301-10050	27
Tie Bars To Frame Brkt	10	40	2	97301-10040	31
Top Yoke	8	50	2	97303-08050	10
Water Pump Cover	6	12	3	92501-06015	23
Water Tank	6	16	1	92502-06016	15
NOTES 1 Should be a shoulder bolt 2 No Yamaha Part Number available
